Just some stuff I have been up to.

Photo update

500 mixer

I am doing something kinda stupid making a 500 mixer in about 7 weeks from deciding to do it till its due.

Update

I have been keeping my self busy here are some photos of what I have been up to

Ghost Town Jenny

Tracking with Ghost Town Jenny

There is a user report from Anthony Gravett on macintouch.com that Apple’s Thunderbolt to Firewire adaptor works with an audio interface.

I have just received Apple’s new Thunderbolt-to-Firewire adapter today and can confirm that it works with my Firewire-only audio interface, an Echo AudioFire2, attached to a MacBook Air 11” (mid-2012).

The adapter appears to add a ‘phantom’ Firewire 800 port to the entire system ” visible in System Report ” so even more-specialized Firewire peripherals should function fine. I am not sure if it provides the same amount of bus power as “real” FW ports, though it provided sufficient power to the AudioFire2.

Resource usage seems to be quite small ” similar to using a native FW port when used for 96 kHz audio; the only sidebar issue is that both ends of the adapter get quite warm during operation (indicating perhaps that there are electronics in both the FW and TB ends).

Several people have responded explaining that this shouldn’t be too surprising as the non-display portion of a Thunderbolt port is effectively a PCI Express slot, so any device attached to it will have to have circuitry similar to a PCIe card. That means that driver-wise, they’re pretty much the same as native. Never the less it is good to hear it is working.

VIA http://www.pro-tools-expert.com/

Neve vs. Great River vs. API vs Manley...

Two flavors of Neve vs. Great River vs. API vs Manley... six incredible preamps on a single player piano. This is a unique way to listen carefully to the subtle differences among some really high-end pre's. (Skip the MP3s; go straight for the 24-bit WAVs.) Via RecordingHacks

The Grand Preamp | recording hacks

recordinghacks.com

Only Chance

Only Chance

Layouts

Hello All,

I am trying to do the schematic capture and layout of a board every week and share them here on this great site to give back.

Here are the latest Craig Anderton Electronic Projects for Musicians Dual Voiced Filter and Moosapotamus' Paralooper with a line driver added.





Documentation and Gerber files  https://dl.dropbox.com/u/7870536/EPM_10.zip






Documentation and Gerber files  https://dl.dropbox.com/u/7870536/ParaloopDI.zip

If anyone is looking to get these boards let me know I will place an order to the manufacture should be around $2 per board.

I will continue to update this thread as to not create new ones.   If there is something that you want laid out please feel free to ask.

Electronics Project for Musicians Project 10 Dual Filter Voicing Unit.

AEA presents: Ronan Chris Murphy - Recording Tricks & Secrets

More Adventurous Cover

Consensual Fuzz and Analogman Sunface comparison

How computers are made

Op Amps

Internet Serious Business!

Soundcraft TS-24; Studio updates

Hey so currently I am talking with some one about getting a Soundcraft TS-24 it has :
56 channels
Full Patchbay
ELCO in/out connect
Hardwood end cheeks and speaker bridge
Power Supplies
2 Service Manuals


Here is a photo of it

This would be going into the new studio we are setting up at Golden West College, send good thoughts!

The Golden Towers

Recording session with Matt Kollar and the Angry Mob yesterday using AEA's KU4 & 88

Studio Builds

So this summer I am going to be working on possibly two different studio builds I will try to keep my blog updated with how things progress

Hey everyone

Hows it going?

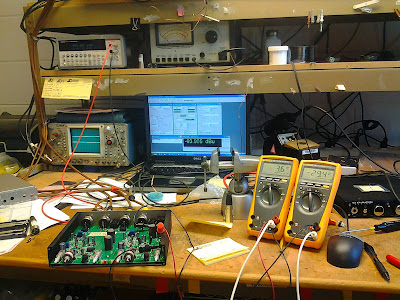

Voltage and Current testing

Been working on testing how many TRPs one power supply will be able to power.

Photo update
